雙斷開機械功用
|
INO+INC Force Break snap action強迫斷開快速機芯
|
|
額定電壓/電流
|
10(4)A, 125, 250VAC / 6(2)A, 380VAC For inductance Load, Cosφ=0.4
|
|
接觸電阻
|
25mΩ max. (initial value)
|
|
絕緣電阻
|
100mΩ min. (at 500VDC)
|
|
電介強度
|
1000VAC, 50/60 HZ for 1 minute between terminals of the same polarity
|
|
1500VAC, 50/60 HZ for 1 minute between current-carrying and non-current-carrying metal parts
|
|
1500VAC, 50/60 HZ for 1 minute between each terminal and ground
|
|

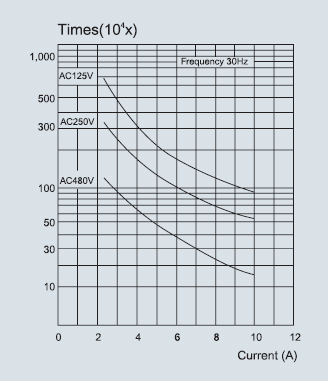

電氣壽命
|
500,000 at 10A 250VAC Resistive
|
|
機械壽命
|
10, 000, 000 operations min. (under rated conditions)
|
|
操作速度
|
5mm/s to 0.5m/s
|
|
防水防塵能力
|
IP65
|
|
上升溫度
|
Max 30℃ over ambient temperature at rated voltage/current
|
|
合乎標準
|
Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660
|
|
操作溫度
|
-5℃~+65℃ (with no icing)
|
|
保存溫度
|
-5℃~+65℃ (with no icing)
|
|
濕度
|
95°RH Max.
|
|
沖擊系數(shù)
|
Mechanical durable: 1000m/s2 min.
|
|
Malfunction: 300m/s2 min.
|
|
振動頻率
|
Malfunction: 10 to 55HZ 1.5mm double amplitude
|
|
端子螺絲扭力
|
6-8 kgf-cm
|
|
其他螺絲扭力
|
Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm
|
|
裸銅線尺寸
|
φ2 Max
|
|
電纜尺寸
|
φ9 Max(IP 65 if use cable φ8-9)
|
